One of the most misunderstood controls in car audio is the gain knob on an amplifier. Many people assume gain controls loudness. Others treat it like a volume knob and simply turn it up.
In reality, gain does not control volume. It controls how sensitive the amplifier is to the input signal coming from the head unit or processor.

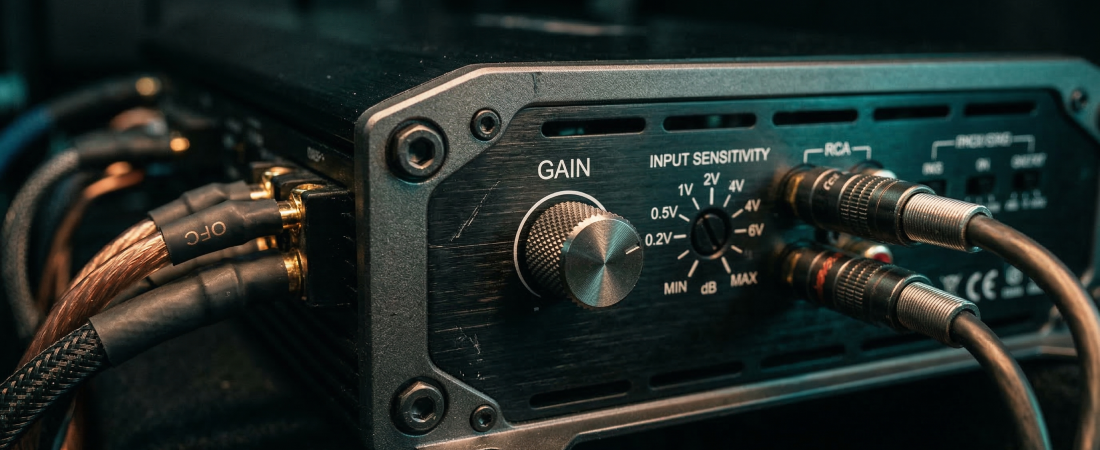

Gain Is Input Sensitivity
The gain control adjusts how much input signal voltage is required for the amplifier to produce full output power.
Head units output a signal voltage (for example 2V or 4V), and the amplifier must match that level correctly.
If gain is set too high, the amplifier reaches full output too early and may begin to clip the signal.
Why Gain Is Not a Volume Control
The head unit volume controls signal strength. The amplifier gain simply determines how the amplifier reacts to that signal.
Setting gain too high can cause distortion long before the volume control reaches its maximum.
This concept becomes clearer when you understand Signal Flow Explained.
What Happens When Gain Is Set Too High
- The amplifier reaches full output early
- The audio waveform becomes clipped
- Distorted power is sent to the speakers
Clipping creates excessive heat in speaker voice coils and is a common cause of speaker failure. Learn more in Why Speakers Blow and RMS vs Peak Power.
Proper Gain Setting
The correct way to set amplifier gain is to match the amplifier to the head unit’s clean signal level.
Multimeter Method
Uses test tones and voltage calculations to set gain safely. See Setting Gains (Multimeter Method).
Oscilloscope Method
Professional installers often use oscilloscopes to visually detect clipping.
Gain Structure in a System
In complex systems, gain structure must be managed across multiple devices including head units, DSP processors, and amplifiers.
Improper gain structure can cause distortion anywhere in the signal chain.
This is explained further in DSP vs No DSP and Basic EQ Principles.
Common Gain Setting Mistakes
- Turning gain up to increase bass
- Setting gain by ear only
- Ignoring head unit output voltage
- Using gain to compensate for system design problems
